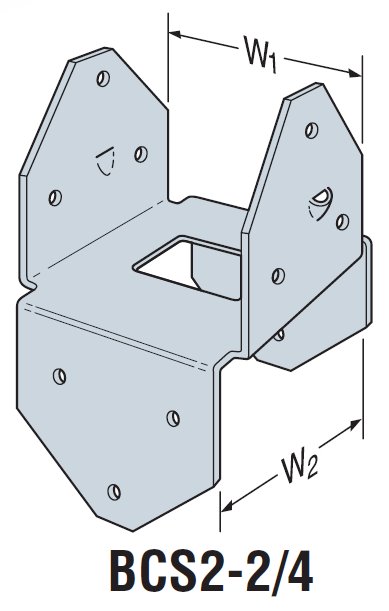

Simpson Strong Tie BCS2-2/4 Double 2x's on 4x Post Cap/Base
• 3-1/8W1 x 3-9/16W2 x 2-7/8L x 2-15/16H
• 18 gauge
• Zinc galvanized finish containing 0.90oz of zinc per square foot of surface area (total both sides)
The BCS allows for the connection of 2-2x's to a 4x post. Double shear nailing between beam and post gives added strength. BCS: install dome nails on beam; drive nails at an angle through the beam into the post below to achieve the table loads. Do not install bolts into pilot holes.
